Streaming Video Downloaders Explained (HLS, M3U8 & MPEG-DASH)

Intro

Modern video streaming uses advanced technologies such as HLS (M3U8) and MPEG-DASH to deliver media efficiently over the internet. Unlike traditional file downloads (MP4), streaming video is split into segments, dynamically adapted to network conditions, and often processed in real time.

This guide explains how streaming video works and how tools like Ant Download Manager can detect, download, and process streaming media automatically.

What is HLS (M3U8)?

HLS (HTTP Live Streaming) is a protocol that delivers video as a sequence of small segments instead of a single file. These segments are listed in a playlist file with the .m3u8 extension.

An HLS stream typically includes:

Master playlist (quality variants)
Media playlist (segment list)
Segments (.ts or .m4s files)

How HLS Streaming Works

Player loads the master playlist
Selects video quality
Downloads media playlist
Fetches segments sequentially

This enables adaptive playback and stable streaming.

HLS Encryption and Delivery

HLS streams may use standard encryption methods such as:

AES-128
AES-192 / AES-256
Initialization Vector (IV)
Key rotation

Segments are encrypted and decoded during playback.

What is MPEG-DASH (MPD)?

MPEG-DASH is a modern streaming standard that delivers video, audio, and subtitles as separate tracks defined in an MPD manifest file.

Unlike HLS, DASH typically separates:

Video streams
Audio streams
Subtitles

MPD Structure Overview

The MPD manifest includes:

Period
AdaptationSet
Representation
SegmentTemplate

This structure allows flexible and adaptive streaming.

How DASH Streaming Works

MPD file is loaded
Streams are selected
Segments are downloaded
Audio and video are merged

DASH Encryption (CENC)

DASH commonly uses:

AES-based encryption
Common Encryption (CENC)
IV handling
Key rotation

HLS vs MPEG-DASH – Key Differences

Feature	HLS (M3U8) MPEG-DASH (MPD)	MPEG-DASH (MPD)
Playlist format	M3U8	MPD (XML)
Audio/Video	Often combined	Separate
Complexity	Lower	Higher
Flexibility	Medium	High
Multi-track support	Limited	Advanced

Which One is More Complex?

MPEG-DASH is generally more complex due to:

Separate media tracks
Dynamic segment generation
Advanced manifest structure

HLS is simpler but still requires segment handling.

How Streaming Video Downloaders Work

Streaming video downloaders must:

Detect streaming protocol
Parse playlists or manifests
Download segments
Handle encryption
Merge media into a file

Why Regular Download Managers Fail

Traditional download managers:

expect direct file links
cannot parse playlists
cannot merge segments

This is why they fail with modern streaming video.

How Ant Download Manager Handles Streaming Video

Ant Download Manager automatically:

Detects HLS (M3U8) and DASH (MPD) streams
Parses playlists and manifests
Downloads segmented media
Processes standard encryption
Merges video and audio streams

All complex processes are handled automatically without manual configuration.

Built-in Media Processing

AntDM also provides:

MP3 extraction
Video trimming
Audio/video merging
Video resizing

How Ant Download Manager Works: Engineered for Seamless Capturing

Ant Download Manager (AntDM) is a robust Windows desktop application specifically engineered to handle complex web streams that cause standard browser downloaders or online web-converters to fail.

To bypass browser security limitations and guarantee reliable downloads, our software architecture is split into three powerful, synchronized components:

[Browser Extension]  <--->  [Native Messaging Host]  <--->  [AntDM Core Application]
(Monitors & Detects)        (Secure Native Bridge)          (Multi-threaded Stitching)

The Browser Extension: This lightweight component constantly monitors your browser's network traffic in the background to immediately detect hidden media streams and manifest files.
The Native Messaging Host: Acting as a secure, high-speed native bridge, it instantly transfers the intercepted streaming links from the browser extension directly to the main desktop application.
The AntDM Core Application: A fully independent, standalone Windows software that performs heavy-duty multi-threaded downloading of all video fragments and executes the final high-fidelity merging of video and audio tracks.

Step-by-Step Guide: How to Download Web Streams with AntDM

Step 1: Download and Integrate

Download the official AntDM installer directly from our website https://antdownloadmanager.com/.
Install the application on your Windows PC.
Integrate the extension into your preferred web browser (Chrome, Edge, Firefox or their clones) during the setup process.

Once properly configured, the active AntDM extension icon will appear in the top-right corner of your browser toolbar, confirming it is ready to monitor media.

Step 2: Detect the Video Stream

Navigate to the web page containing the video you want to save and click Play. If the video is publicly accessible (and not restricted by digital rights management (DRM) or custom proprietary encryption algorithms), AntDM will instantly capture the stream configuration.

Step 3: Choose Your Download Interface (Video Button vs. Video Box)

AntDM provides two convenient, highly customizable layout modes to capture your media depending on your personal preference.

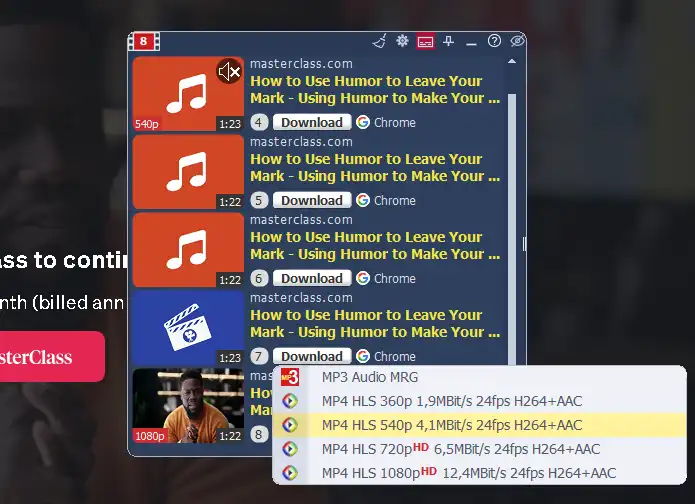

Ant Download Manager (AntDM) Video Box example

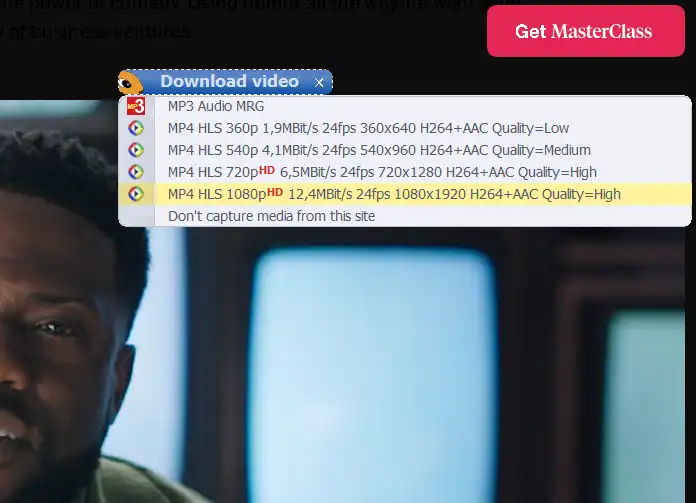

Option A: The Video Button (Default Mode)

A discrete download button will appear directly over the video player (usually in the upper-right corner).

Click this button to open a drop-down menu displaying all available resolutions and formats detected.
Select your preferred quality to immediately send the stream to the AntDM download queue.

Option B: The Video Box (Advanced Mode)

If you prefer a comprehensive view of all available media assets on a single web page, you can switch from the Video Button to the Video Box:

Click the AntDM extension icon in your upper-right browser toolbar.
Click the Right Arrow (->) button to expand the extension menu.
Locate the interface settings and switch the radio button preference to Video Box.

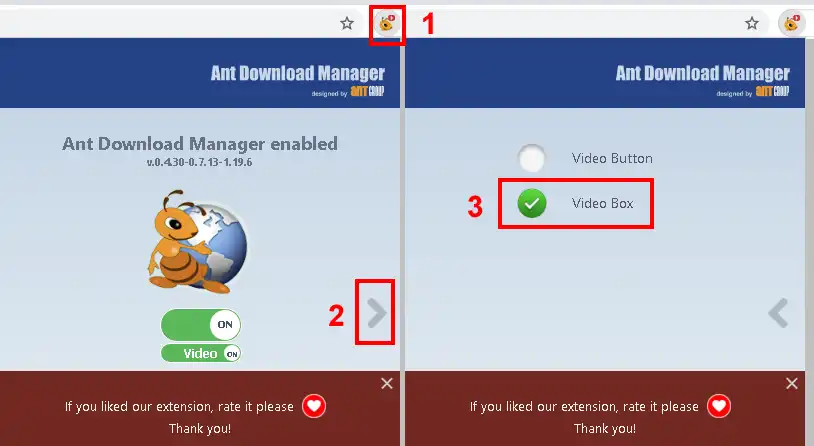

Ant Download Manager (AntDM) - switch from Video Button to Video Box

Once enabled, the Video Box will list all captured video and audio components in a clean interface, allowing for advanced bulk selection and detailed media link management.
